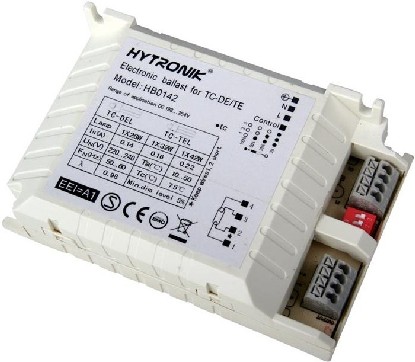

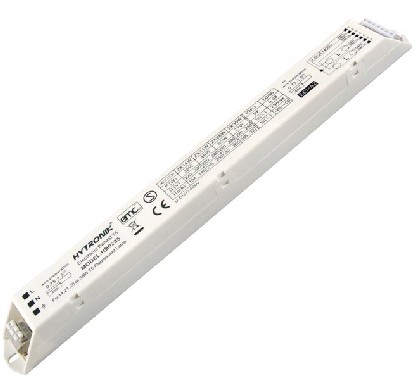

HYTRONIK T5 Ballasts

Features:

*defined lamp warm start 1.2s
*constant light output independent of fluctuations in mains voltage.
*average service life =50,000 h.
*AC voltage range 170-270V,
*DC voltage range 180-280V,
*power factor 0.95 (except for HB0121).
*operating frequency= 42khz.
*wide operating temperature range from -20 to +50 degreesC.
*suitable for use in emergency lighting installations in accordance with VDE0108.
*safe switch off of defective lamps.
*automatic re-start after lamp change.
*for luminaires with or and in acc.with EN60598 / VDE0710 and VDE0711.
*suitable for luminaires with safety class I and class II.
*ingress protection: IP20.
*thermal protection according to EN61347-2-3 C5e.

Certified:
EN55015
EN61547
EN61347-2-3
EN61000-3-2
EN61000-3-3

Lamp starting characteristics:
Warm start starting time 1.2 secs with AC and DC operation cathode heating will be reduced after preheat time.

AC operation
Mains voltage:
220-240V 50/60Hz
198-264V 50/60Hz including safety tolerance(±10%)
202-254V 50/60Hz including performance tolerance(+6% / -8%)

DC operation
220-240V
198-280V certain lamp start 176-280V operating range.
Light output level in DC operation:100%.

Emergency lighting
Use in central battery emergency lighting installation according to VDE-0108 or for emergency luminaires according to EN61347-2-3 appendix J
